BAGGING MACHINE

Bagging Machine Specifications

We feel proud to introduce ourselves as the leading manufacturer and supplier of Net Type Bagging Machine. This machine is known for compact design, sturdy construction, high tensile strength, smooth operation and ability to withstand harsh conditions. To manufacture this Net Type Bagging Machine, our professionals use world class components with the help of cutting edge technology under the guidance of experienced professionals. This machine can be availed by our clients as per their application requirements within promised time frame.

Net Type Bagging Machine

A net bagging machine weighs the product independently to the bag. The discharge clamp is a separate construction to the weigh bin, which means that, as the operator fits a bag to the bottom discharge clamp, the product has already commenced filling to the target weight. This produces superior final bag accuracy and greater bagging rates per minute than gross bagging machines.

The unit is totally electronic from the load cells to the weigh indicator, which allows seamless interfacing with on-site computer management systems, if required.

DESCRIPTION: After the feed manufacturing process it is required to pack & store properly to handle care &transport easily. Proper packing isobtained it a proper and well-designed auto bagging machine is installed in the plant. It is not only increases the packing capacity but also the weighing accuracy can be obtained.

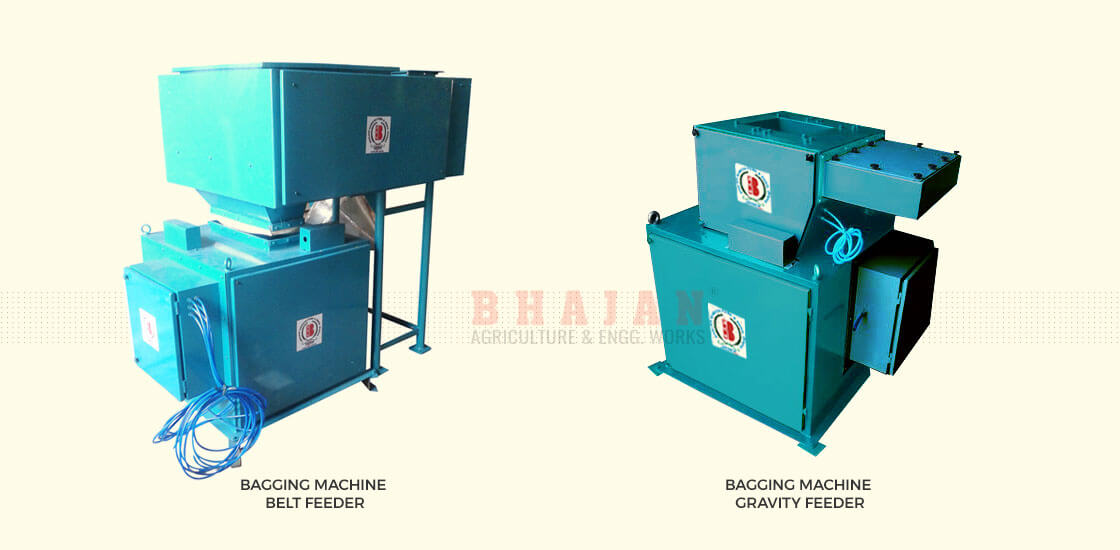

The machine is fitted on a separate steel structure to isolate the vibration of main structure, transfer to weigh hopper to avoid inaccuracy in weighing and is connected to overhead bin through a flexible connection. Depending on material characteristic suitable feeder - gravity feeder, single screw, double screw, flat belt or vibrator type feeder is used for feeding material from storage hopper to weigh hopper. For animal feed generally gravity feeder is used. Coarse and fine feed arrangement is provided for controlling accurate flow of material.

The weigh hopper is carefully designed with consideration of volume and angle of repose of different materials. The weigh hopper is mounted on load cells, which sense the weight of material in the weigh hopper. The weigh hopper is of enclosed design for dust free operation and aspiration connection is provided for dust collection.

The bag clamp is mounted below the weigh hopper and is operated pneumatically. Rubber liners are provided to the clamp are and avoid slippage of bags. A lever switch is provided near the bag chute for operator to clamp the bag.

Technical Specifications
System Net Type Bagging Machine
Capacity 5 to 70 kg bag
Filling Type if any Gravity Feeder, Belt Feeder, Screw Feeder
Resolution (e) 10 gr.
Accuracy + 20 gr.
Number of Fillings 5-6 Bags / min
Filling Valve Pneumatically operated
Features of the Control Panel Coarse, Fine, In-flight setting & Weight achieved / Cumulative quantity display
Load Sensor Load cell
Operating Temperature 10o C to 50o C
Power 230 V AC, 50 Hz
Air Supply 5 - 6 kg / cm2
Note : Accuracy and Number of filling are based on the properties and flow characteristics of the materials
